Mindray V60 Sevoflurane Anesthesia Vaporizer
SKU 115-025532-00
In stock
$3,499.99
Price excludes freight and applicable tax. Volume pricing available on multiple units.
Purchase orders and net terms available for hospitals and government buyers.
Function tested
Electrical safety + function check on file
[warranty term]
Term set per condition tier
Ships in
[lead time]
Crated freight on capital equipment
Returns accepted
[return window]
Overview

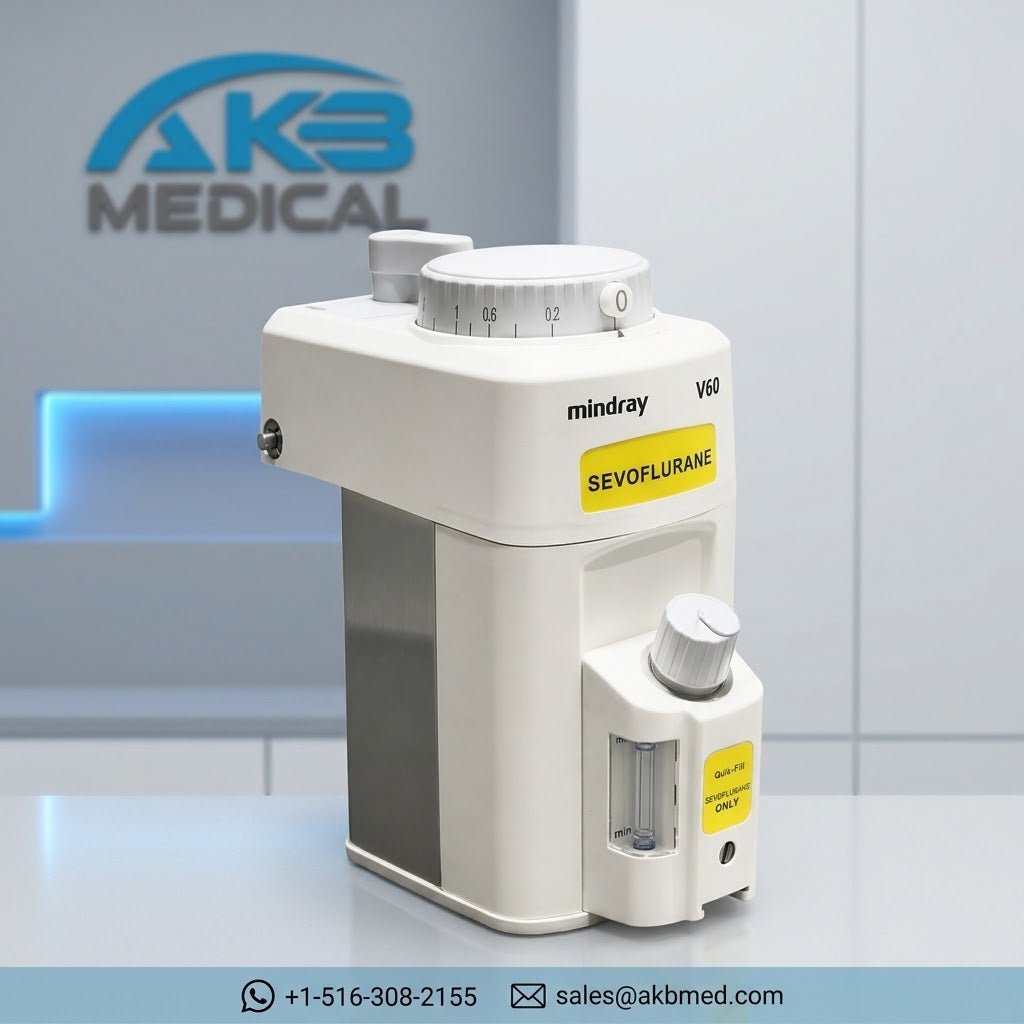

The Mindray V60 Sevoflurane Vaporizer 115-025532-00 is an agent-specific anesthesia vaporizer for sevoflurane delivery on compatible anesthesia systems. It helps evaporate liquid sevoflurane and deliver a controlled anesthetic gas concentration to an anesthesia delivery system during supported clinical workflows.
This vaporizer uses an unheated, calibrated vaporizer design. In addition, it supports fresh gas flow as low as 0.2 L/min, which helps support low-flow anesthesia techniques when used with compatible equipment. As a result, anesthesia teams can manage sevoflurane delivery across a wide clinical flow range.
The Mindray V60 Sevoflurane Quik-Fil Vaporizer includes Selectatec-compatible plug-in mounting, a large agent capacity, automatic compensation for flow, temperature, and pressure changes, and a sevoflurane dial range up to 8%. Therefore, it works well for operating rooms, anesthesia departments, surgery centers, and biomedical departments that maintain compatible Mindray anesthesia systems.
Key Features
- Reference number / MPN: 115-025532-00
- Product type: Anesthesia vaporizer
- Brand: Mindray
- Model: V60
- Agent type: Sevoflurane
- Filling system: Quik-Fil / Quick-Fill
- Agent-specific vaporizer
- Unheated, calibrated vaporizer design
- Selectatec-compatible plug-in mounting
- Sevoflurane dial markings up to 8%
- Fresh gas flow range: 0.2 to 15 L/min
- Flow range for concentrations above 5 Vol.%: 0.2 to 10 L/min
- Agent capacity: 360 mL dry wick / 300 mL moist wick
- Capacity between minimum and maximum marks: 260 mL
- Automatic compensation for flow, temperature, and pressure changes
