AKB Medical

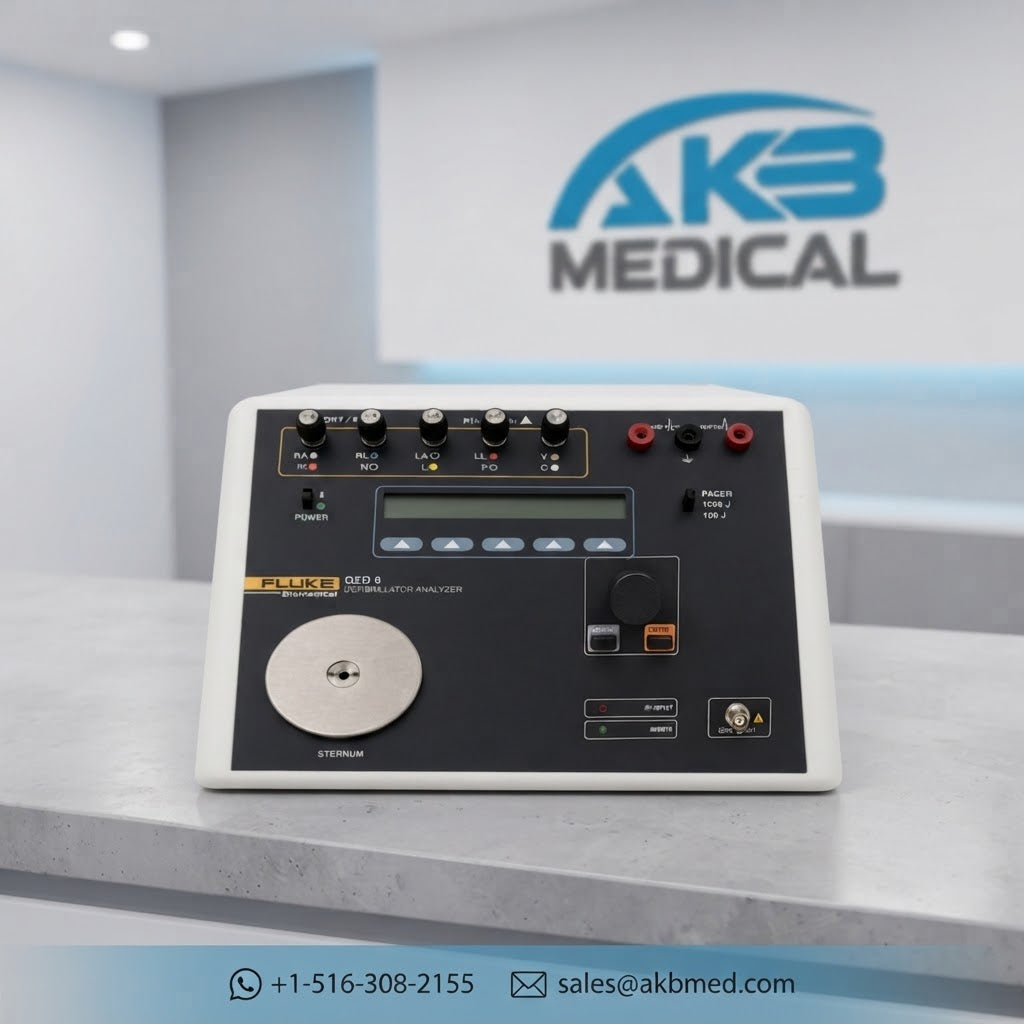

Fluke QED 6 Defibrillator Analyzer
SKU QED 6
In stock
$2,999.99
Price excludes freight and applicable tax. Volume pricing available on multiple units.
Purchase orders and net terms available for hospitals and government buyers.
Function tested
Electrical safety + function check on file
[warranty term]
Term set per condition tier
Ships in
[lead time]
Crated freight on capital equipment
Returns accepted
[return window]
Overview
The Fluke QED 6 Defibrillator Analyzer helps biomedical technicians test defibrillators during preventive maintenance, incoming inspection, repair verification, and service documentation. It measures defibrillator energy output and supports cardioversion timing checks, peak voltage measurement, peak current measurement, and overshoot measurement. REF 2817226 identifies the QED 6 defibrillator analyzer in Fluke Biomedical’s current product record.
In addition, the QED 6 supports monophasic and biphasic DC energy measurement . It measures energy across low and high ranges, stores output waveforms for playback, and provides ECG output, paddle output, and scope output options for detailed waveform review. Therefore, technicians can check defibrillator output performance and review discharge behavior during service testing.
Key Features
- Reference number: 2817226
- Monophasic and biphasic DC energy measurement
- Energy and cardioversion measurement
- Peak voltage, peak current, and overshoot measurement
- Low energy range: 0 J to 100 J
- High energy range: 0 J to 400 J
- Pulse width range: 1 ms to 50 ms
- Cardioversion sync timing range: 0 ms to 199.9 ms
- Internal load: 50 Ω ±1%
- 2-line x 24-character LCD display
- RS-232 serial communication
- Waveform storage and playback
Specifications
| Manufacturer | AKB Medical |
|---|---|
| Model / part number | QED 6 |
| Warranty | awaiting data |
| Power supply | awaiting data |
| Dimensions (W × H × D) | awaiting data |
| Weight | awaiting data |
What's included
Populate from the whats_included metafield: main unit, power supply, patient cables, battery, manuals and any mounting hardware shipped with this configuration.
Documents
Datasheets, operator manuals and test records appear here once product files are attached.
Shipping, warranty & returns
Shipping
Accessories ship via ground carrier. Capital equipment ships crated on a pallet with freight class declared and tracking supplied.
Warranty
Warranty term varies by condition tier and is shown on this page when the product metafield is populated.
Returns
Return window, restocking fee and RMA process are confirmed per product when available.
Payment & terms
Card, ACH and wire. Purchase orders and net terms for approved hospital, government and education accounts.
