AKB Medical

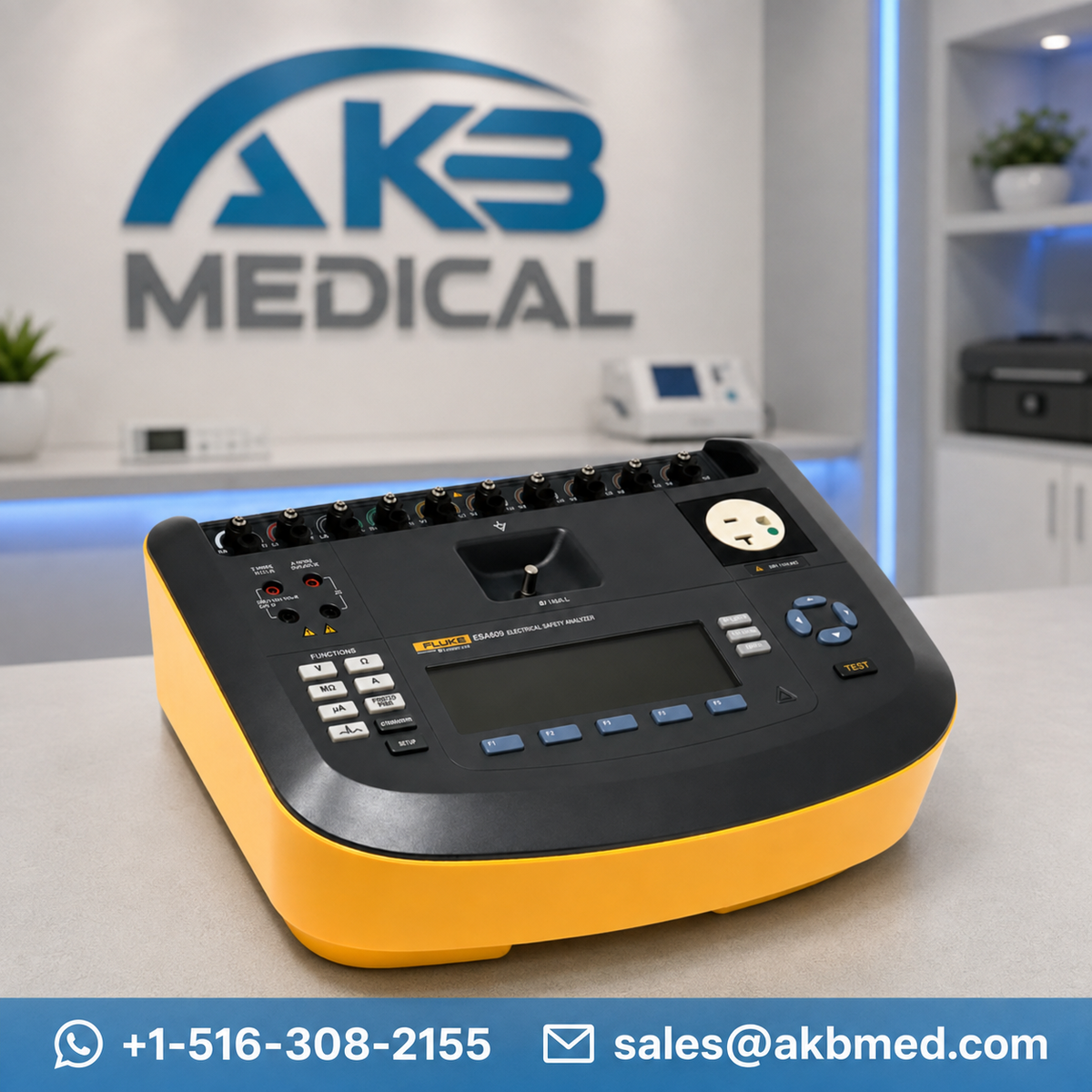

Fluke ESA620 Electrical Safety Analyzer
SKU ESA620
In stock
$5,249.99
Price excludes freight and applicable tax. Volume pricing available on multiple units.
Purchase orders and net terms available for hospitals and government buyers.
Function tested
Electrical safety + function check on file
[warranty term]
Term set per condition tier
Ships in
[lead time]
Crated freight on capital equipment
Returns accepted
[return window]
Overview
The Fluke Biomedical ESA620 Electrical Safety Analyzer tests medical device safety with leakage, earth resistance, insulation, equipment current, voltage, and ECG simulation functions.
Key Features
- Fluke Biomedical ESA620 electrical safety analyzer
- Portable biomedical test instrument
- Tests to IEC 60601-1, EN 62353, AN/NZS 3551, IEC 61010, VDE 751, ANSI/AAMI ES1, and NFPA 99
- Three selectable test loads
- Five insulation resistance tests
- Ten insulated applied-parts connections
- Expanded leakage range up to 10,000 µA
- AC only, DC only, and AC+DC True RMS leakage readings
- 2-wire earth resistance testing
- Optional 4-wire earth resistance testing
- Equipment current range: 0 to 20 A AC RMS
- Mains voltage range: 0.0 to 300 V AC RMS
- Leakage current ranges: 0.0 to 199.9 µA, 200 to 1999 µA, and 2.00 to 10.00 mA
Specifications
| Manufacturer | AKB Medical |
|---|---|
| Model / part number | ESA620 |
| Warranty | awaiting data |
| Power supply | awaiting data |
| Dimensions (W × H × D) | awaiting data |
| Weight | awaiting data |
What's included
Populate from the whats_included metafield: main unit, power supply, patient cables, battery, manuals and any mounting hardware shipped with this configuration.
Documents
Datasheets, operator manuals and test records appear here once product files are attached.
Shipping, warranty & returns
Shipping
Accessories ship via ground carrier. Capital equipment ships crated on a pallet with freight class declared and tracking supplied.
Warranty
Warranty term varies by condition tier and is shown on this page when the product metafield is populated.
Returns
Return window, restocking fee and RMA process are confirmed per product when available.
Payment & terms
Card, ACH and wire. Purchase orders and net terms for approved hospital, government and education accounts.
Questions about this unit?
Send the model and your configuration. We confirm compatibility, condition and lead time before you raise a PO.
Ask about this product
